FSM — Swiss Army Knife for Linux Hardware Diagnostics

A modern program for getting information about computer hardware and installed software.

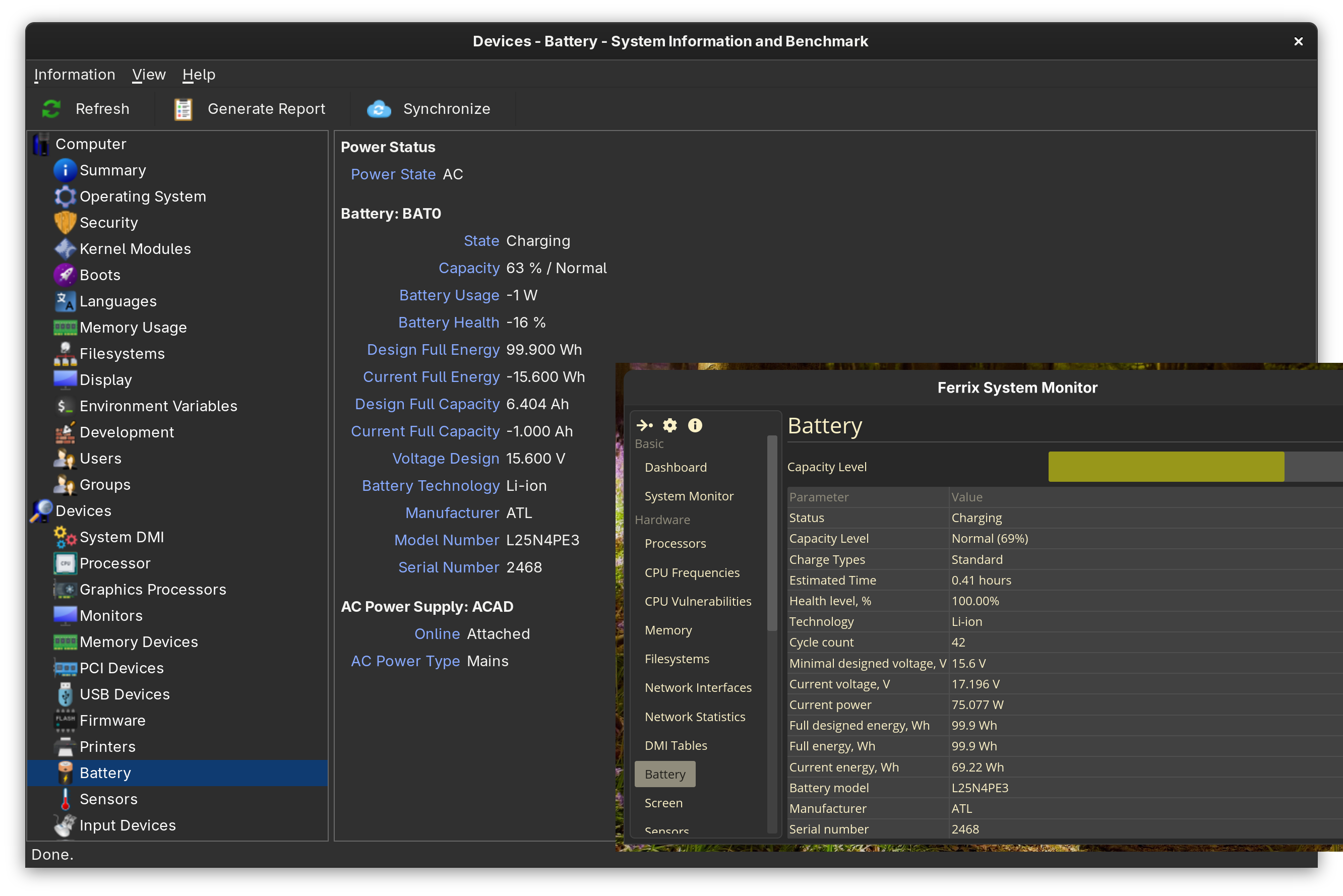

Other screenshots

What is FSM?

FSM is a modern system profiler. Is a program for obtaining information about computer hardware and software. It is designed to work in modern GNU/Linux systems.

Functions

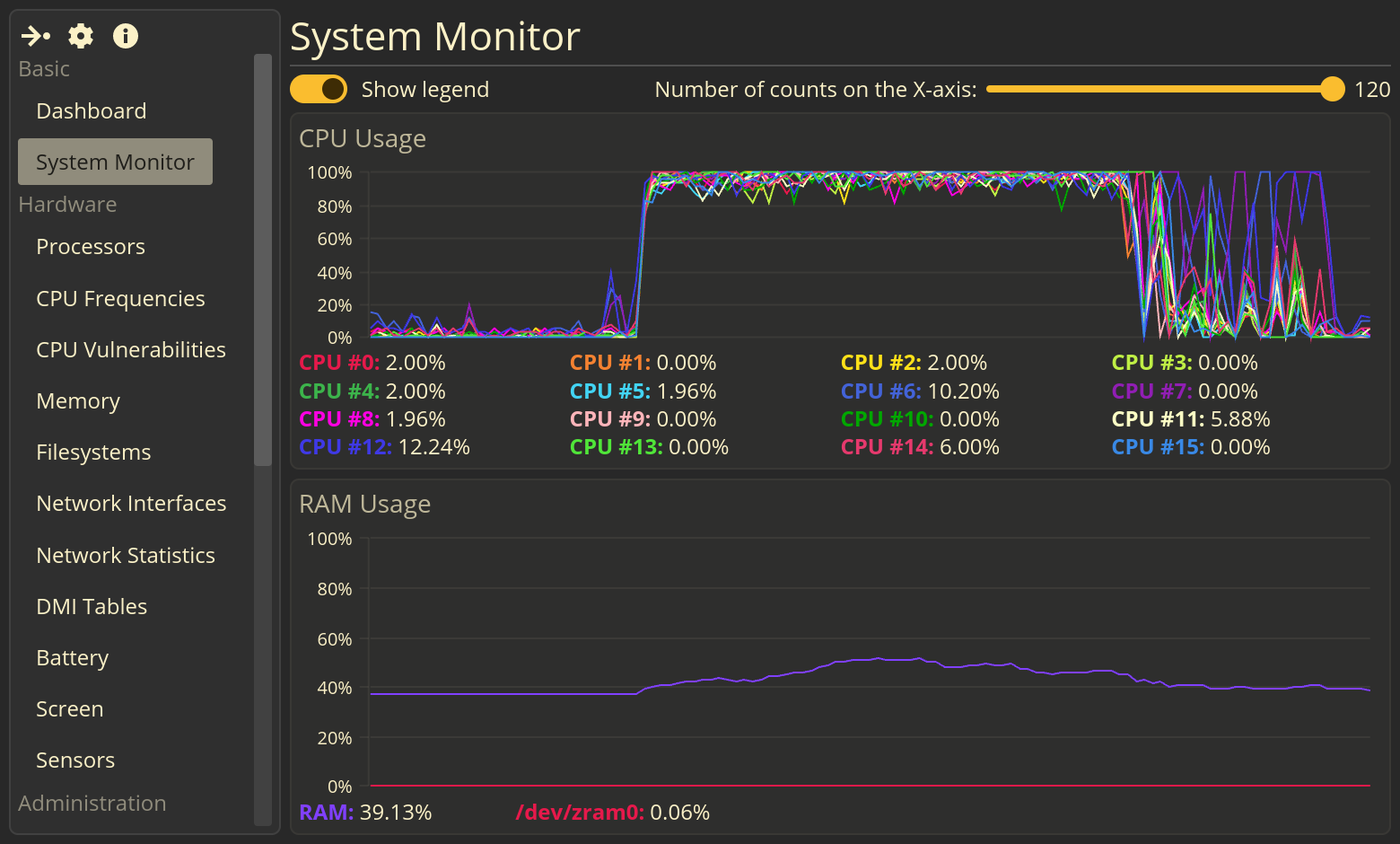

• Beautiful CPU and RAM utilization charts (System Monitor page);
• Hardware:
  • Information about installed CPUs: name(s), model(s), topology, frequencies, vulnerabilities;
  • Filesystems: mount point and mount options, total and used size, file system type;
  • Memory: total, free, used memory, cached memory, buffers, swap(s), etc.;
  • Network interfaces list;
  • Some data from the DMI tables (BIOS, System, Baseboard, Processors) - WIP;
  • Installed notebook battery(es) - status, capacity, battery health, technology, voltage, power, energy, battery manufacturer, battery model and serial number;
  • Screens - supported modes and some data from EDID;
• Software:
  • Information about installed GNU/Linux system: name, version, maintainer/developer, homepage URL, etc.;
  • Users and groups list;
  • Environment variables list;
  • systemd services list;
  • Installed software list (only deb and rpm packages is displayed yet);
  • Linux kernel information;
  • Kernel modules list;
  • Desktop environment name;

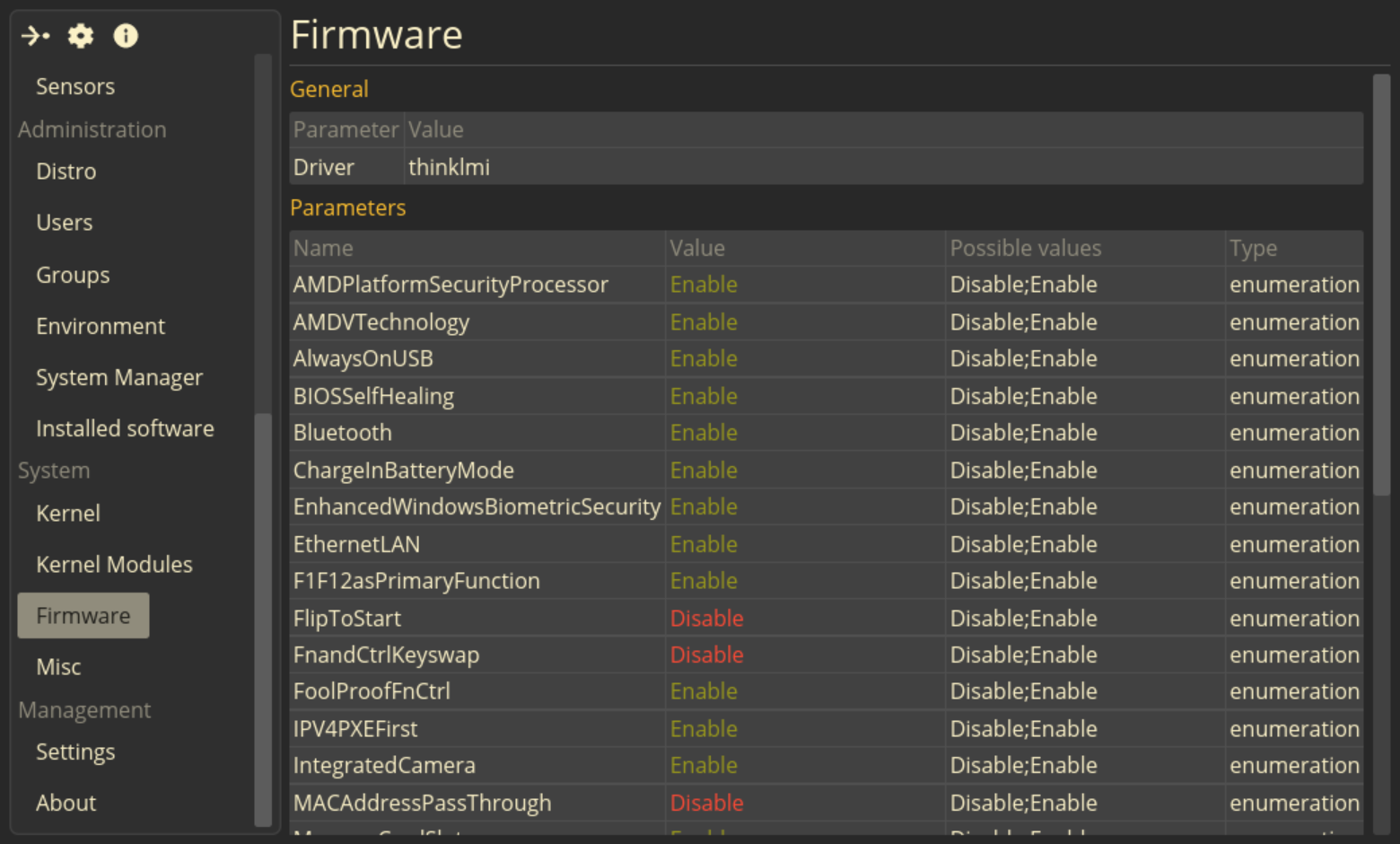

  • UEFI Settings (tested on Lenovo ThinkBook);

Difference from analogues

Criteria	FSM	Hardinfo2	Stacer/Nexis
Programming language	Rust	C	C++
Program type	System profiler	System profiler & hardware benchmark	System optimizer and monitor
GUI	iced	GTK3	Qt5/Qt6
License	GNU GPLv3	GNU GPLv3	GNU GPLv3
CPU&RAM utilization charts	🟢️	⚪️ (charts is ugly)	🟢️
CPU Information	🟢️	🟢️	⚪️
Memory Information	🟢️	🟢️	⚪️
Filesystems Information	🟢️	🟢️	🔴️
Network Information	⚪️	🟢️	🔴️
DMI Tables contents	⚪️ (full information from BIOS, Baseboard, Chassis, System, Processors, Memory Devices tables)	⚪️ (only basic information from Chassis, BIOS, Baseboard tables)	🔴️
Notebook battery(es) Info	🟢️	⚪️ (incorrect battery information)	🟢️
Connected screens Info	⚪️	🟢️	🔴️
Installed Linux system	🟢️	🟢️	🔴️
Users and groups list	🟢️	🟢️	🔴️
Environment variables list	🟢️	🟢️	🔴️
systemd services list	🟢️	🔴️	🔴️
Linux boots list	🔴️	🟢️	🔴️
Installed software list	🟢️	🔴️	🔴️
Linux kernel information	🟢️	🟢️	🔴️
Desktop environment info	⚪️	⚪️	⚪️
Command shell info	🟢️	🔴️	🔴️
UEFI Attributes Info	🟢️	🔴️	🔴️
Hardware benchmarks	🔴️	🟢️	🔴️
System cleaning tools	🔴️	🔴️	🟢️
PCI- and USB-devices list	🔴️	🟢️	🔴️
Supported locales list	🔴️	🟢️	🔴️
GPU information	🔴️	🟢️	🔴️
Sensors information	🔴️	🟢️	⚪️
Target audience	Advanced users who need detailed information about software and hardware	Enthusiasts and overlockers interested in benchmarks and system comparisons	Beginners and regular users who want a simple tool for configuring and cleaning up their system
Real-time monitoring	🟢️	⚪️	🟢️
Official AppImage builds	🟢️	🔴️	🟢️

• 🟢️ - yes;
• 🔴️ - no;
• ⚪️ - partial;

Installation

You can use the universal AppImage package (no installation required) or install the deb/rpm packages (for Debian/Ubuntu or Fedora/RHEL).

For all systems (AppImage package)

• Dependencies:
  • glibc >= 2.36;
  • Xorg or Wayland;
  • Graphics drivers;

Download the AppImage package (only amd64 is supported yet):

Make this package executable:

sudo chmod +x ./Ferrix.System.Monitor-v0.7.1-x86_64.AppImage

Run this package:

./Ferrix.System.Monitor-v0.7.1-x86_64.AppImage

For Debian/Ubuntu

• Minimum version required: Debian 11, Ubuntu 22.04;
• Dependencies:
  • glibc >= 2.36;
  • dbus;
  • Xorg or Wayland;
  • Graphics drivers;

Download the package for your CPU architecture:

Install using apt:

sudo apt install ./ferrix-app_0.7.1-1_${your architecture}.deb

For Fedora/RHEL

• Minimum version required: Fedora 42;
• Dependencies:
  • glibc >= 2.36;
  • dbus;
  • Xorg or Wayland;
  • Graphics drivers;

Download the package (only amd64 is supported yet):

Install using dnf:

sudo dnf install ./ferrix-app-0.7.1-1.x86_64.rpm

Building from the source code

• Dependencies:
  • glibc >= 2.36;
  • GNU make;
  • GNU coreutils;
  • rustc, cargo >= 1.96;
  • [optional] dpkg, dpkg-dev, liblzma-dev for building the deb package;
  • [optional] docker, buildx-plugin for docker;
  • [optional] libfuse2, wget for appimage build;

Clone this repository:

git clone https://github.com/mskrasnov/FSM
cd        ./FSM

Building on the host

1. Prepare your host system:

# If you use Debian/Ubuntu and its derivatives:
sudo bash ./packaging/debian/setup.sh

# If you use Fedora/RHEL:
sudo bash ./packaging/fedora/setup.sh

This script will install all build dependencies, including the Rust programming language toolchain (rustup, cargo, rustc).

2. Build the package:

• debug-profile without optimizations and LTO:

make debug

• release-profile with optimizations and LTO and without debug symbols:

make build

If you want to build Debian package, run this (on Debian):

cargo install cargo-deb
make deb

If you want to build Fedora/RHEL package, run this (on Fedora):

cargo install cargo-generate-rpm
cargo generate-rpm --target-dir=${PWD}/target/

Cross compilation (Debian 12 x86_64 glibc -> i686/AArch64 glibc)

Install the cross-compilator:

sudo dpkg --add-architecture {arm64/i686}
sudo apt update

# For AArch64:
sudo apt install gcc-aarch64-linux-gnu binutils-aarch64-linux-gnu libc6-dev-arm64-cross
rustup target add aarch64-unknown-linux-gnu

# For i686:
sudo apt install gcc-12-i686-linux-gnu binutils-i686-linux-gnu
rustup target add i686-unknown-linux-gnu

Build FSM:

#   debug-profile:
make TARGET={i686/aarch64}-unknown-linux-gnu debug
# or
#   release-profile:
make TARGET={i686/aarch64}-unknown-linux-gnu build

Docker build

Note 1: In the Docker container you can build the Debian or Fedora/RHEL packages and AppImage.

Note 2: Each of the built packages will be placed in the builds/ directory.

1. Some preparations.

1.1. To build deb or AppImage packages:

docker build -t fsm-debian -f ./packaging/debian/Dockerfile .

1.2. To build rpm package:

docker build -t fsm-fedora -f ./packaging/fedora/Dockerfile .

2. Build packages.

2.1. Build deb-packages:

docker run --rm            \
    -v "${PWD}:/workspace" \
    fsm-debian             \
    packaging/debian/build.sh

Note: This script will build 3 packages: for the amd64, i386, and aarch64 architectures.

2.2. Build AppImage package (for amd64):

docker run --rm            \
    -v "${PWD}:/workspace" \
    fsm-debian             \
    packaging/debian/appimage.sh

2.3. Build rpm package (for amd64):

docker run -- rm           \
    -v "${PWD}:/workspace" \
    fsm-fedora             \
    packaging/fedora/build.sh

Running in WSL

export XDG_SESSION_TYPE=xorg
export DISPLAY=':0'
export WAYLAND_DISPLAY=
ferrix-app

Running test version (pre-v0.8.0)

cargo build
cargo run --bin=fxapp

TROUBLESHOOTING

See FSM Home Page for details.

Technology stack

• OS: Linux with glibc, dbus and systemd;
• Programming language: Rust 1.96+ (2024 edition);
• GUI: iced;
• Hardware: modern PC or laptop;

❤️ Support FSM

Developing FSM takes time and passion. If you find it useful, please consider supporting its development:

• Star ⭐ this repo! It helps others discover FSM;
• Write comments, questions, bug reports, or suggestions for new functionality in issues.
• If you are from Russia, send me a donation 💰 in Boosty. This will help me keep my enthusiasm alive, as well as pay my internet bills so that I can continue working on FSM.
• Spread the world! Tell friends, post on forums.

License

Ferrix System Monitor is free and open-source software distributed under the GNU General Public License v3.0. See LICENSE file for details.
