blackbox: A Python module for parallel optimization of expensive black-box functions

What is this?

A minimalistic and easy-to-use Python module that efficiently searches for a global minimum of an expensive black-box function (e.g. optimal hyperparameters of simulation, neural network or anything that takes significant time to run). User needs to provide a function, a search domain (ranges of each input parameter) and a total number of function calls available. A code scales well on multicore CPUs and clusters: all function calls are divided into batches and each batch is evaluated in parallel.

A mathematical method behind the code is described in this arXiv note (there were few updates to the method recently): https://arxiv.org/pdf/1605.00998.pdf

Don't forget to cite this note if you are using method/code.

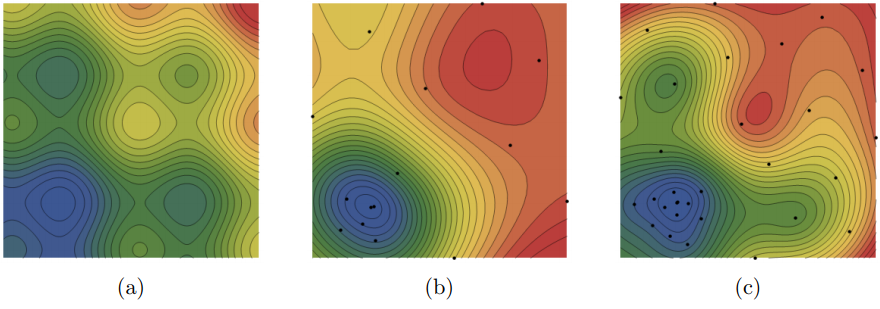

Demo

(a) - demo function (unknown to a method).

(b) - running a procedure using 15 evaluations.

(c) - running a procedure using 30 evaluations.

Installation

You can install it with uv (run uv init first if you don't have an existing project yet):

uv add git+https://github.com/paulknysh/blackbox

or, with pip, into a virtual environment:

python3 -m venv .venv
source .venv/bin/activate
pip install git+https://github.com/paulknysh/blackbox

Development

To work on blackbox itself, clone the repo and run uv sync. Testing, linting, and formatting are done in one command:

make sure

CI runs these steps automatically on every push and pull request (with ruff format --check instead of ruff format).

Objective function

Simply needs to be wrapped into a Python function.

def fun(par):
    ...
    return output

par is a vector of input parameters (a Python list), output is a scalar value to be minimized.

Running the procedure

import blackbox as bb


def fun(x):
    return (x[0] - 1) ** 2 + (x[1] - 1) ** 2


if __name__ == "__main__":
    result = bb.minimize(
        f=fun,  # given function
        domain=[[-5, 5], [-5, 5]],  # ranges of each parameter
        budget=20,  # total number of function calls available
        batch=4,  # number of calls that will be evaluated in parallel
    )
    # best result (x and function value)
    print(result["best_x"])
    print(result["best_f"])

    # the entire history of evaluations
    # print(result["all_xs"])
    # print(result["all_fs"])

Important:

• All function calls are divided into batches and each batch is evaluated in parallel. Total number of batches is ceil(budget/batch) (the budget is automatically rounded up to a multiple of batch). The value of batch should correspond to the number of available computational units.
• An optional parameter executor = ... should be specified within bb.minimize() in case when custom parallel engine is used (ipyparallel, dask.distributed, pathos etc). executor must be a callable (e.g. a class or factory) that, when called with no arguments, returns a context-managing object exposing a map method (it is invoked as with executor() as e:). The default is multiprocessing.Pool.
• The default executor is multiprocessing.Pool, which pickles the objective function f to send it to workers. This means f must be picklable: a lambda or a closure defined in a REPL/notebook will raise a PicklingError. Use a top-level function (as in the example above) or pass a custom serial executor / dask/ipyparallel executor that avoids pickling.

Results

bb.minimize() returns a dictionary with the following keys:

• "best_x" - best iteration
• "best_f" - corresponding function value
• "all_xs" - all iterations
• "all_fs" - corresponding function values

License

MIT
